Cirrus Design can help your company reverse engineer a product, converting a point cloud into a 3D model.

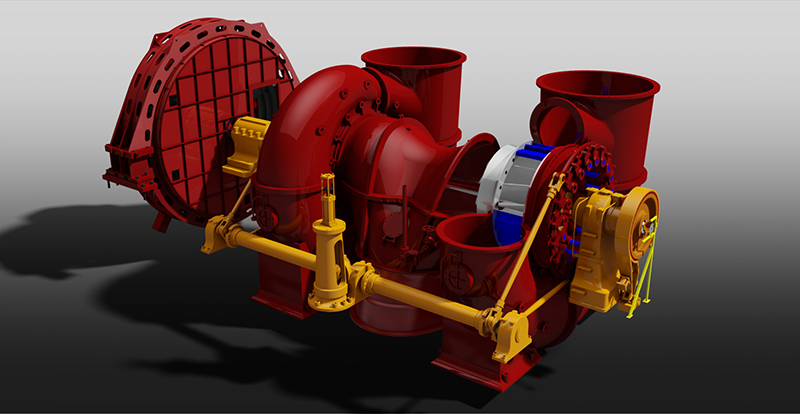

The use of our technology and capabilities has helped our clients reverse engineer machinery wear items and parts with complex geometry, such as turbines, bearings and scroll cases. This saves time and money by alleviating the need to physically visit a plant or facility for simple information, pictures, or to capture specific dimensions. All of that data will now be accessible from the 3D Point Cloud that we provide, giving a high-resolution and distortion-free visualization of the structure that’s accessible from the comfort of an office.

Small Applications

  • Accuracy: +-0.10mm or .004in
  • Handheld and Turntable scan options
  • Used for small part reverse engineering
  • Maximum size is 3 ft cubed
  • Faster than hand measurements by 2x or more
  • Measure complex surfaces and angles on parts

Large Applications

  • Accurate within 1mm or .040"
  • Scanning volume: Up to 3m3
